Low Volume Hydrominder 511 - 4.5 GPM

Take the hassle out of mixing your car wash soaps with the Hydrominder model 511. When the fluid level in your chemical reservoir drops, a float activates a non-electric magnetic valve on the unit. It will then automatically draw and accurately mix more soap and water to add to the chemical resevior storage tank. This venturi-based dispenser delivers the perfect dilution every time. Once the preset fill level is reached, the Hydrominder float closes the valve. This prevents the storage tank from overflowing and your expensive chemical waste.

Metering tips make it easy to customize the dilution ratio, ensuring it aligns with the manufacturer's recommended specifications for the chemical being used. The Hydrominder 511 is built with quality, chemically resistant materials that handle car wash applications flawlessly. This self-contained and self-controlled system is easy to use and maintain. It enhances employee safety by eliminating exposure to concentrated chemicals. Plus, it saves time and labor by removing the need for manual handling, measuring, and mixing.

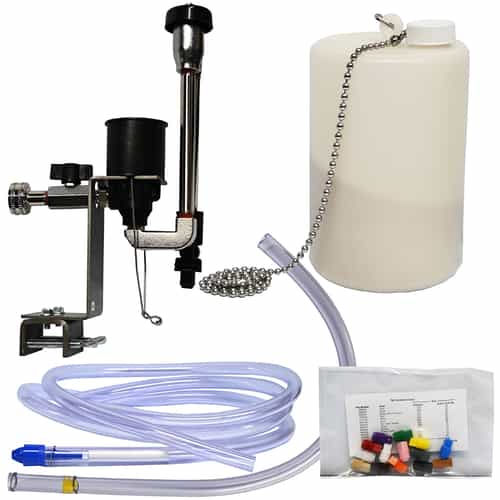

Includes:

• Proportioner with U-clamp for mounting
• Float with chain
• Suction tube with foot valve- 9 ft.
• Discharge tube- 2 ft.
• Metering tip kit (14 tips)
• Production information sheet

Features:

• Automatically Mixes Chemicals – Eliminates the risks associated with employees handling and measuring chemicals, ensuring accurate dilution every time.
• Consistent Dilution Ratios – It reliably provides precise chemical concentrations for consistent and effective results.
• Metering Tip System – Allows precise customization of dilution ratios to meet manufacturer specifications for optimal chemical performance.
• Float Valve System – Automatically refills reservoirs when levels drop, ensuring a continuous supply.
• Durable, Corrosion-Resistant Construction – Built to withstand harsh chemicals and demanding environments.
• Electric-Free Design – Operates without electricity, reducing energy costs and simplifying installation.
• Simple Installation – Fast and easy setup with minimal effort required.
• Versatile Chemical Compatibility – Works with a wide range of soaps, detergents, and other cleaning chemicals.
• Proven Reliability – Backed by over 20 years of industry use, this trusted system delivers consistent performance in car washes, industrial cleaning, and other demanding applications.
• Saves Time – No need for manual mixing, allowing employees to focus on other tasks.
• Reduces Chemical Waste – Prevents backflow contamination by stopping chemicals from siphoning back into the water supply, ensuring a safe and compliant mixing process while protecting against chemical waste.
• Lowers Operational Costs – Reduces product waste and labor costs associated with manual mixing.
• Minimizes Human Error – Eliminates the guesswork of dilution, ensuring accurate chemical mixing.
• Supports Efficient Workflow – Keeps car wash reservoirs properly filled without constant supervision.
• Eco-Friendly – Helps prevent overuse of chemicals, reducing environmental impact.

Dilution Ratios:

• Range - 240:1 (max) to 4:1 (min)
  • No Tip 4:1
  • Gray 5:1
  • Black 6:1
  • Beige 8:1
  • Red 17:1
  • White 23:1
  • Blue 25:1
  • Tan 36:1
  • Green 48:1
  • Orange 64:1
  • Brown 75:1
  • Yellow 90:1
  • Purple 120:1
  • Pink 240:1

Applications:

• Automatic or self-serve car washes
• High-pressure cleaning systems
• Parts washing machines
• Water treatment systems
• Animal Health
• Industrial
• Tote and Drum Filling
• Chemical Delivery
