Reservoir Proportioning System

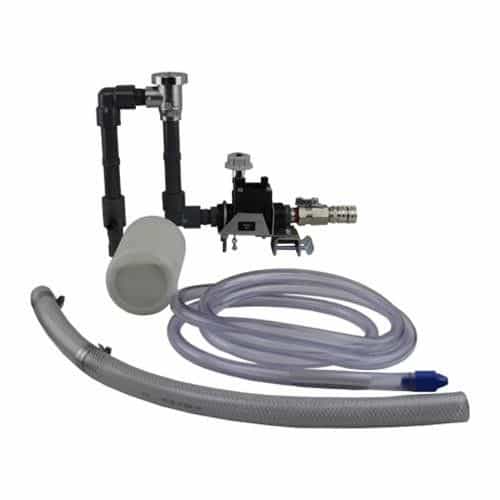

The Model 562 HydroMinder is designed to consistently keep reservoirs filled with accurately proportioned solutions. When the level of solution contained in the reservoir drops a float opens the magnetic valve (non-electric) which correctly proportions and siphons the solution into the reservoir. Once the preset liquid level has been reached in the reservoir tank the float closes stopping the flow.

Specifications:

• Model Number: 562

• Siphon Breaker: Yes

• Mounting Bracket: Yes

• Flow Rate: 18 GPM

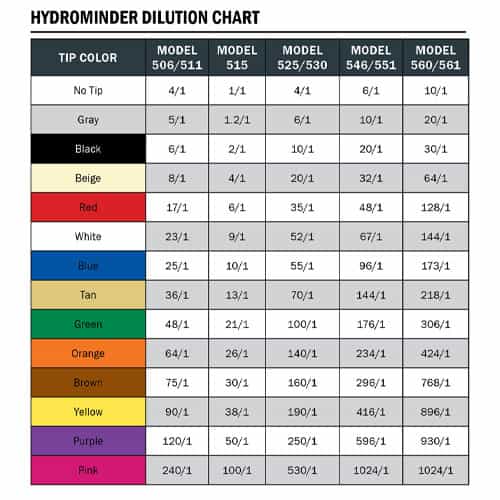

• Approximate Dilution Range

• Minimum: 6.5:1

• Maximum: 1200:1

Features:

• Automatic Mixing

• Environmentally Friendly - Reduces Solid Waste Using Concentrates

• Variety of Applications

• Use Water Power

• No Electricity Required

• Chemical Resistant Materials

• Easy to Operate and Maintain

• Eliminates Exposure to Concentrated Product When Manually Mixing

• Environmentally Friendly

• In the Field for Over 20 Years


Applications:

• Automatic or Self-Serve Vehicle Washing Systems

• Central Cleaning Systems

• Water Treatment Systems

• Conveyor Lubricating Systems

• Spraying Systems

• High Pressure Cleaning Systems

• Metal Finishing Systems

• Machine Tool Cooling Systems

• OEM Cleaning Systems

• Parts Washing Machines

• High Volume Pumping Systems
